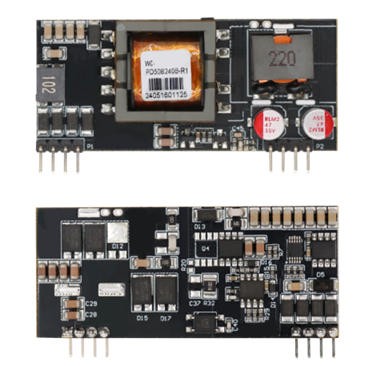

WC-PD50B240B-R1 48W through hole PD-24V PoE PD power module

Product characteristics  Compliance with IEEE802.3at& bt &af standard  42V~57Vwideoperating voltage range  Maximumoutput power up to 48W; Rated output: 24V/2A  Theoutput ripple is less than 150 mV  Conversion efficiency can be as high as 90% (input: 48V output :24V@2A)  Ithasexcellent reliability and circuit protection such as over current, short circuit, under voltage and surge  PCBStandard Size: 62.1mm*27mm*16.1mm  Input/Output: isolate 1500Vdc  Class 8 IEEE802.3 PD  High reliability: The design meets the 5 million hour average failure interval

TheWC-PD50B240B-R1PoEmodule isatraditional Category 5 and Category 6 twisted pair Ethernet power supply module based on the IEEE 802.3bt PoE standard  Designedto extract power from power supply equipment (PSE) through conventional twisted pair cables over Category 5 and Category 6 Ethernet cables. Module inputs comply with IEEE803.2bt signature recognition and classification standards  Preconfigured as a Type 4, Level 8 device, allowing the module to obtain class 8 power from the PSE, with a rated output voltage of 24V. Efficient DC/DC converters can achieve an efficiency of over 90% and operate within a wide input voltage range, with low ripple and low noise output. The DC/DC converter also has built-in output overload and short circuit protection, and provides 1500Vdc (input output) isolation barrie
