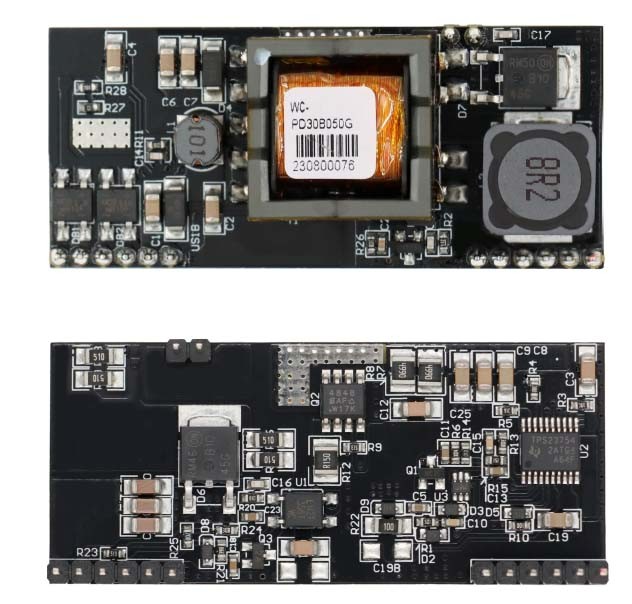

PoE PD Power Ethernet Module 30W PD-5V

Product characteristics

 Compliance with IEEE802.3at standard

 42V~57V wide operating voltage range

 Maximum output power up to 30W; Rated output:

5V/6A

 The output ripple is less than 200 mV

 Conversion efficiency can be as high as 85% (input:

48V output：5V@6A)

 It has excellent reliability and circuit protection such as

over current, short circuit, under voltage and surge

 PCB standard size: 62*27*14.1mm

 Input/Output: isolate 1500Vdc

 Class 4 IEEE802.3 PD

 High reliability: The design meets the 5 million hour

average failure interval
