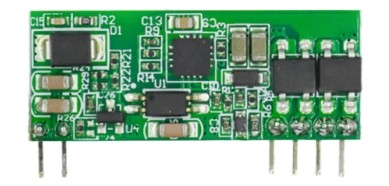

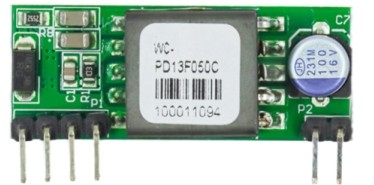

WC-PD13F050C 10W through hole PD-5V PoE power module

Ø Compliance with IEEE802.3af standard

Ø 39V~57V wide operating voltage range

Ø Maximum output power up to 10W; Rated output: 5V/2A

Ø The output ripple is less than 150 mV

Ø Conversion efficiency can be as high as 85% (input: 48V  output5V@2A)

Ø It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge

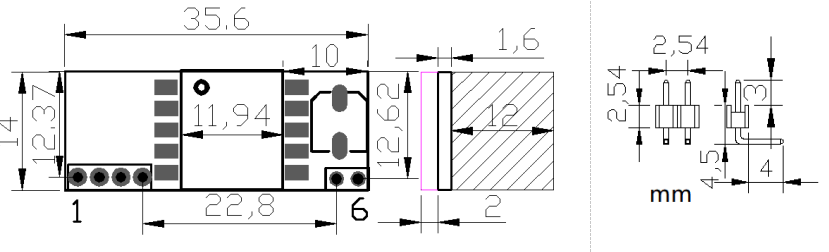

Ø PCB standard size: 35.6*14*15.6mm

Ø Input/Output: isolate 1500Vdc

Ø Class 3 IEEE802.3 PD

High reliability: The design meets the 5 million hour average failure interval

Ø The WC-PD13F050C PoE (power over Ethernet) module is a traditional Category 5 and 6 twisted pair Ethernet power supply module based on the IEEE 802.3AF PoE standard

Ø Designed to extract power from power supply equipment (PSE) through conventional twisted pair Category 5 and Category 6 Ethernet cables. Module inputs comply with IEEE803.2AF signature recognition and classification standards

Pre configured as a Type 1, Level 3 device, allowing the module to obtain class 3 power from the PSE, with a rated output voltage of 5V. Efficient DC/DC converters can achieve an efficiency of over 85% and operate within a wide input voltage range, with low ripple and low noise output. The DC/DC converter also has built-in output overload and short circuit protection, and provides 1500Vdc (input output) isolation barrier
