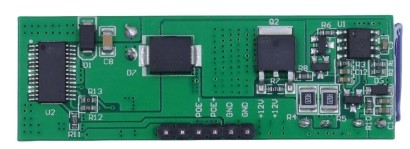

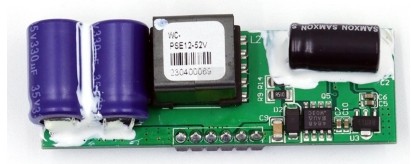

C-PSE12-52V 30W IEEE802.3 standard PSE power supply

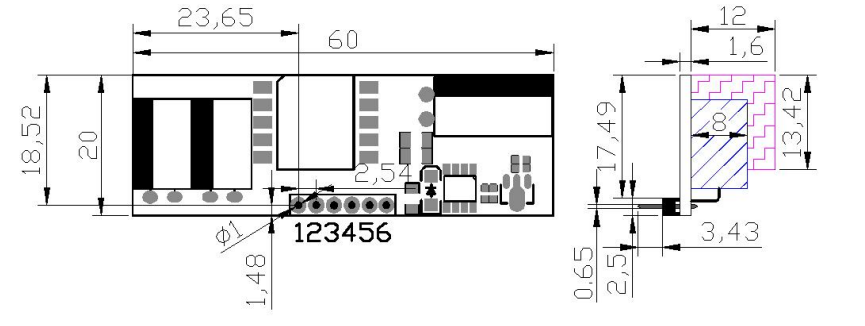

Compliant with IEEE802.3AT standard (backward compatible with AF)  Wide working voltage range from 12V to 24V  Under the IEEE 802.3at standard, the output power can reach up to 30W  Input undervoltage output overcurrent temperature short circuit protection and integration  The conversion efficiency of the built-in boost module exceeds 90%, solving the installation problem of input voltage for customers  1500Vdc isolation voltage (input/output)  Excellent reliability and circuit protection against overcurrent, short circuit, undervoltage, surge, etc.  PCBA standard size: 60 * 20 * 15.6mm  Class 4


WC-PSE12-52V is a single port low input voltage IEEE802.3at power supply equipment (PSE) that can be flexibly used through Ethernet (POE) applications  Automatically detect power devices (PDs) with valid signatures, determine power requirements based on classification, and then apply power. Support two event classifications for two types of PD  WC-PSE12-52V is an independent module that only requires a few external components to provide extensive control and feedback for each power unit (PD) connected to the PS
