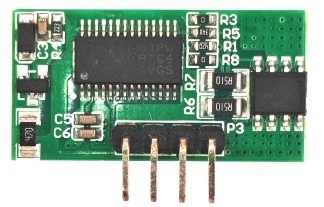

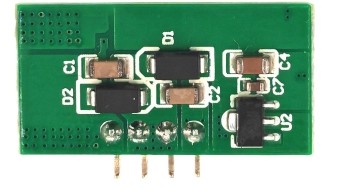

WC-PSE48-48 30W IEEE802.3 8 non isolated power supply

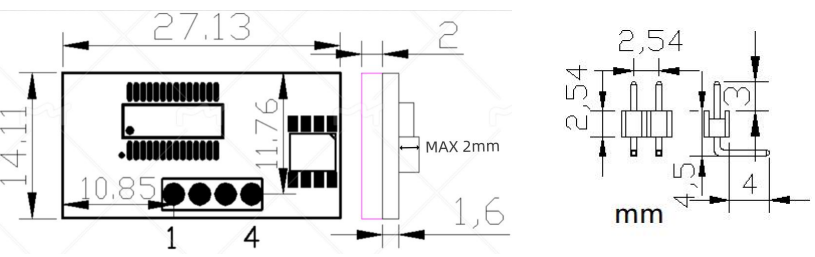

 Compliant with the IEEE802.3 at standard protocol and backward compatible with IEEE802.3 af  Wide input voltage range of 42V to 57V  Upper limit classification Class 4  Automatically detect power supply devices (PD) with valid signatures  Compatible with single feature and dual feature PD  Superior reliability in overcurrent, short circuit, undervoltage, surge, and other aspects  PCB standard size: 27.13 * 14.11 * 6.6mm

WC-PSE48-48 is a single port ieee802.3at power supply equipment (PSE) for flexible use through Ethernet (PoE) applications  The power supply device (PD) with valid signature is automatically detected, and the power supply demand is determined according to the classification, and the power supply is applied. Supports two event classification for type 2 PD  The WC-PSE48-48 is an independent module that requires only a few external components to provide a large amount of control and feedback for each power supply unit (PD) connected to the PSE
