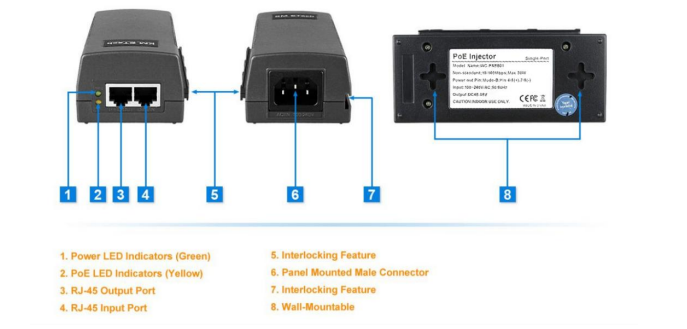

Non standard PoE design, 48-56VDC strong supply output voltage (voltage output when plugged in) Reduce the demand for bulky power adapters and cables, and lower wiring costs Delivering power and data to equipment via a single Ethernet cable Single port PoE power supply, output power 30W Power output voltage: DC48-56 VDC High safety with surge protection Remote power feeding up to 100 meters Supports a network bandwidth of 10/100Mbps Unique interlocking feature for easy installation Built in power supply, plug and play, no need for management

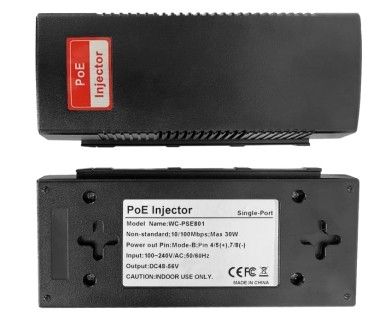

WC-PSE801 is a 100Mbps Ethernet power supply device with one Ethernet input (data only) port and one output
(data+power) port, designed specifically for small to medium-sized network environments
This power supply is suitable for indoor use (please place it in a waterproof box outdoors), and can work normally
with input voltages ranging from 100VAC to 240VAC. The power supply is connected to the network terminal
equipment through a Category 5 cable. This device can power a PoE application for a single Ethernet device, such
as routers, switches, wireless APs, network telephones, industrial network terminals, network cameras, etc., to
provide efficient engineering in places where remote power cannot be provided or where Ethernet cable power
supply is used to improve system reliability and simplify device installation. It can also be used in conjunction with
PoE separators (such as PS13-5712C, PS30-5712T, etc.) to provide stable power and data transmission for non PoE
powered device
