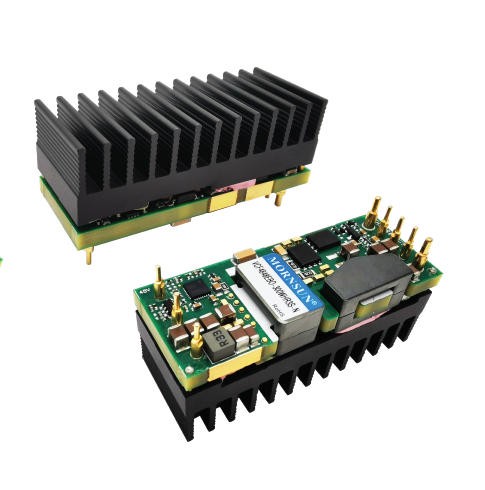

VCF48_EBO-300W 48v to 24v 12A 300w DC/DC 1/8 brick power module

 Wide input voltage range: 36-75 VDC  High efficiency up to 93%  I/O isolation test voltage 2250 VDC  Operating ambient temperature range: -40℃ to +100℃  Input under-voltage protection, output over–voltage, over-current, short circuit, over-temperature protection  Industry standard package: 1/8 brick  Meet EN62368 standards

VCF48_EBO-300W(F/H)R3S-N series is a high-performance product designed for the field of communication power supply, output power up to 300W, no minimum load requirements, with 36-75VDC wide voltage input, allowing operating temperature up to 85℃, With input undervoltage protection, output overvoltage protection, output overcurrent protection, output short circuit protection, over temperature protection, remote control and compensation, output voltage regulation and other functions, through the periphery to meet CISPR32/EN55032 CLASS B, widely used in battery power supply equipment, industrial control, electric power, instrumentation, communication, intelligent robot and other fields.
