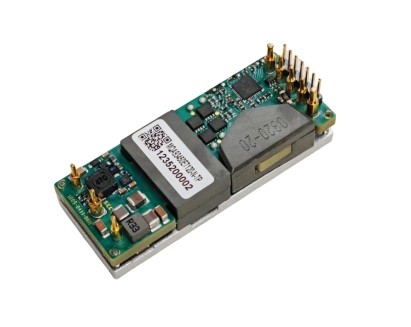

FEATURES
➢ Wide operating voltage: 36~75V
➢ Tightly regulated single output:
✓ 12V/25A
➢ Output power up to 300W
➢ High Efficiency 95.3% (48V VIN, 12V VOUT, 15A lo)
➢ Constant switching frequency
➢ Remote sense
➢ Output over-current / short-circuit protection
➢ Output over-voltage protection
➢ Over-temperature protection
➢ Input under-voltage Protection
➢ EN control polarity selectable
✓ Negative: EN connect VIN- for normal operation
✓ Positive: EN floating or High Level for normal
operation
➢ Industry standard footprint
✓ 58.4mm x 22.9mm x 9.6mm
✓ 2.3 in x 0.9 in x 0.38 in
➢ Industry standard footprint for “TP” & “TL”
✓ 58.4mm x 22.9mm x 12.7mm
✓ 2.3 in x 0.9 in x 0.50 in
➢ Monotonic start-up
➢ Wide Operating Temperature: -40℃ ~ +85℃
