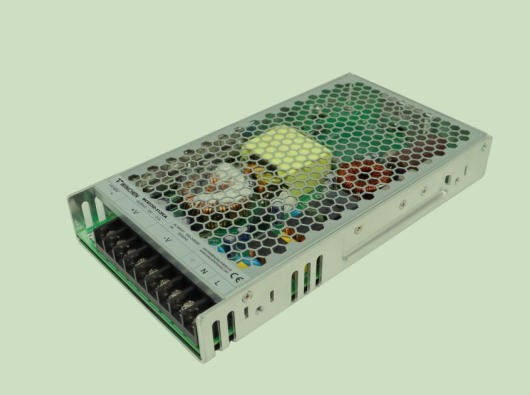

Winchen WCAT250-SXXFCA 200w SMPS AC/DC switch power module

Product Features  Universal Input Voltage: 90~264VAC, 127~370VDC  EMC and safety specifications comply with IEC62368/ EN62368/UL62368, EN55032/CISPR32, IEC/EN61000- 4 and other relevant standards  Output overload, short-circuit, overvoltage and over-temperature protection  1U form factor design  Low power consumption, environmentally friendly  Integrated active PFC function  High efficiency and high power density, efficiency up to 90.5%  Isolation voltage up to 3000VAC  Operating temperature range: -30℃～+70℃  Product dimensions: 215×115×30mm  3-year quality warranty  100% full-load burn-in test

Electrical Characteristics Input Characteristics Nominal Voltage 100~240VAC Input Voltage Range 90～264VAC，127~370VDC Input Frequency 47~63Hz Power Factor (Typ.) PF>0.95/230VAC PF>0.98/115VAC at full load Input Current (Typ.) 3A /115VAC 1.5A /230VAC Impulse Current (Typ.) cold start 20A/115VAC 40A/230VAC Leakage Current (Typ.) ＜1mA at 240VAC Output Characteristics Output Voltage Accuracy ±1.0% 5V：±3.0% 7.5V：±2.0% 12V：±1.5% Line Regulation ±0.5% Load Regulation ±0.5% 5V：±2.0% 7.5/12/15V：±1.0% Start Rise Time (Typ.) 1500ms/50ms/230VAC 3000ms/50ms/115VAC full load Hold-up Time (Typ.) 8ms/230VAC 8ms/115VAC full load Ripple & Noise(Max.) 250mVp-p Protection Characteristics Overload Protection 110~140% load, constant current limiting over 3 seconds, hiccup mode, restart recovery after fault clearance Short Circuit Protection Hiccup mode, auto-recovery after fault removal
