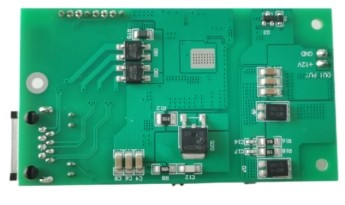

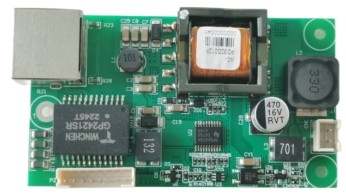

WC-PD30D012P 30W Surface Mount IEEE802.3at PoE power module

Ø Compliance with IEEE802.3at standard(backward compatible with AF)

Ø 42V~57V wide operating voltage range

Ø Supports 10/100/1000M data transmission

Ø Maximum output power up to 30W; Rated output: 12V/2.5A

Ø The output ripple is less than 200 mV

Ø Conversion efficiency can be as high as 87% (input: 48V output：12V@2.5A)

Ø It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge

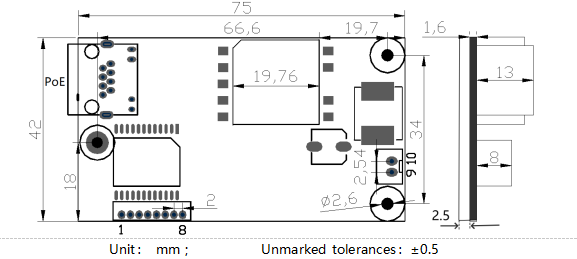

Ø PCB standard size: 75*42*17.1mm

Ø Class 4 IEEE802.3 PD

Ø Input/Output: isolate 1500Vdc

High reliability: The design meets the 5 million hour average failure interval

Ø The WC-PD30D012P PoE (power over Ethernet) module is a traditional Category 5 and Category 6 twisted pair Ethernet power supply module based on the IEEE 802.3AT PoE standard

Ø Designed to extract power from power supply equipment (PSE) through conventional twisted pair cables over Category 5 and Category 6 Ethernet cables. Module inputs comply with IEEE803.2AT signature recognition and classification standards

Pre configured as a Type 2 Level 4 device, allowing the module to obtain class 4 power from the PSE, with a rated output voltage of 12V. Efficient DC/DC converters can achieve an efficiency of about 87% and operate within a wide input voltage range, with low ripple and low noise output. The DC/DC converter also has built-in output overload and short circuit protection, and provides 1500Vdc (input/output) isolation barrier
