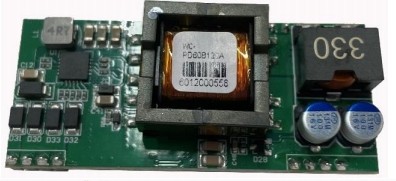

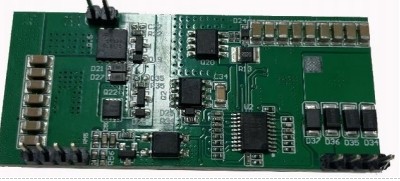

WC-PD60B120A 60W IEEE802.3 PoE power module

Ø Compliance with IEEE802.3at&IEEE802.3bt standard

Ø 42V~57V wide operating voltage range

Ø Maximum output power up to 60W; Rated output: 12V/5A

Ø The output ripple is less than 150 mV

Ø Conversion efficiency can be as high as 90% (input: 48V output：12V@5A)

Ø It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge

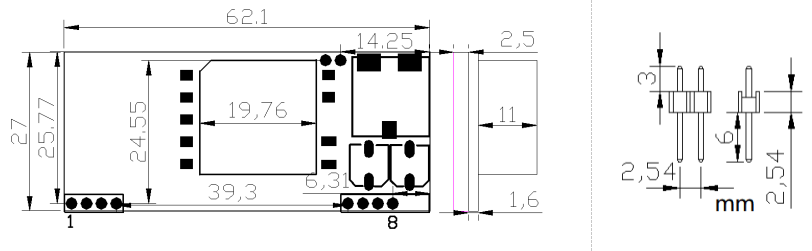

Ø PCBA standard size: 62.1*27*15.1mm

Ø Class 8 IEEE802.3 PD

Ø Input/Output: isolate 1500Vdc

High reliability: The design meets the 5 million hour average failure interval

Ø The WC-PD60B120A PoE (Power over Ethernet) module is a traditional Category 5 and Category 6 twisted pair Ethernet power supply module based on the IEEE 802.3BT PoE standard

Ø Designed to extract power from power supply equipment (PSE) through conventional twisted pair cables over Category 5 and Category 6 Ethernet cables. The module input complies with IEEE803.2BT signature recognition and classification standards.

Pre configured as a Type 4, Level 8 device, allowing the module to obtain class 8 power from the PSE, with a rated output voltage of 12V. Efficient DC/DC converters can achieve an efficiency of over 90% and operate within a wide input voltage range, with low ripple and low noise output. The DC/DC converter also has built-in output overload and short circuit protection, and provides 1500Vdc (input/output) isolation barrier
