Winchen 24V OEM SPoE-powered digital switches

Ultra-high backplane bandwidth design has extremely fast data processing capability and improves the smooth transmission performance of data signals  Support DC power supply through Category 5 or more  Simple to use, plug and play, lightning protection design, lossless transmission Security monitoring zero jam, network power supply cable is not limited by power line, saving labor and wiring costs  The switch meets the needs of network power supply, suitable for IP camera monitoring and building intercom equipment is widely used in smart communities, smart education, smart medical care, smart office parks, Network communication fields such as hotels and small and medium-sized enterprises  SPOE network port with network extension signal mode: switch to determine the transmission distance; Instructions for use of the switch  100m: When the control key is adjusted in this position, the SPoE Switch port bandwidth rate is 100Mbps, and the transmission distance is 100 meters  250m: when the control key is adjusted in this position, the SPoE Switch port bandwidth rate is 10Mbps, and the transmission distance is 250 meters  The SPOE power supply switch pays special attention to the wiring method (data: 12+36-; Power supply 45+, 78-), referred to as straight-through mode

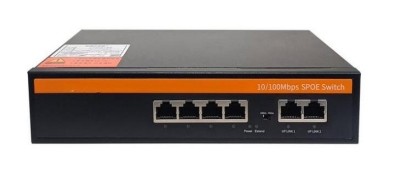

100 Gigabit access, dual electrical ports uplink (cascaded application)  Provide 4 x 10/100M adaptive electrical ports with power-off protection + 2 x 10/100M adaptive fast Ethernet electrical ports, which is convenient for on-site flexible cascade networking and meets the networking needs of various scenarios such as optical fiber transmission  All ports support non-blocking wire-speed forwarding, smoother transmission  Support IEEE 802.3, IEEE 802.3U, IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control SPOE Power supply function  4 x 10/100Base-TX RJ45 ports support 24V SPoE power supply to meet the power supply needs of building intercom, security monitoring, wireless bridge, etc.  The maximum SPoE output power of the whole machine is up to 48W, and the maximum PoE output power of a single port is 30W  Through the power supply port of the SPoE Switch, it is directly connected to the non-standard SPoE powered equipment (building intercom) or SPoE Switch + non-standard splitter (connected to the camera), and the uplink cascade of the dual electrical ports or links to the aggregation switch to quickly realize the power supply and data transmission function of the SPoE network cable Simple operation  Plug and play, no configuration required, simple and convenient  With long-distance function switch, 1-4 when on port supports 10M/250m long-distance transmission  Users can easily grasp the working status of the device through the power indicator (Power) and port status indicator Stable and reliable equipment  Low power consumption, fanless and silent design of the host, metal shell to ensure the stable operation of the product  Reasonable built-in power supply structure and high redundancy design provide long-lasting and stable POE power supply output  The device is fully compliant with ISO:9001, CE, FCC, ROHS
