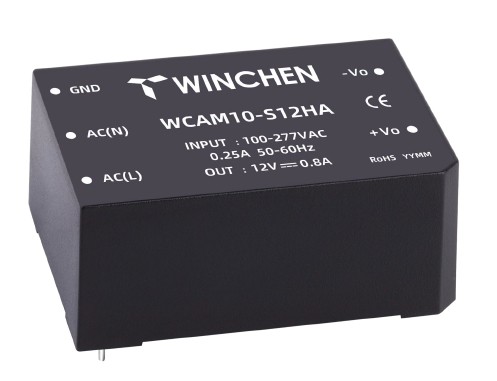

The WCAM10-SXXHA series product is a high stability, ultra small volume (48.5 * 36 * 25mm) modular switching power supply. This series of modular power supplies has a small volume
Features such as high reliability, high isolation voltage, and high cost-effectiveness. This series of products is mainly used in industrial control and related equipment in heavy industrial environments, such as in environments with more severe electromagnetic compatibility
Reference must be made to the application circuit during the process.
Ultra small size, high power density, high conversion efficiency
Wide voltage input (85-305Vac, 100-400Vdc)
EMC up to level 4 (EN61000-6-2, A-level heavy industry standard)
Low ripple (30mV), low noise
Low power consumption, green environmental protection, no-load loss<0.1W
High efficiency, with an efficiency of up to 84%
Working temperature: -40~+70 ℃
Isolation voltage up to 3000VAC
Environmentally friendly design, compliant with RoHS directive
100% full load aging
