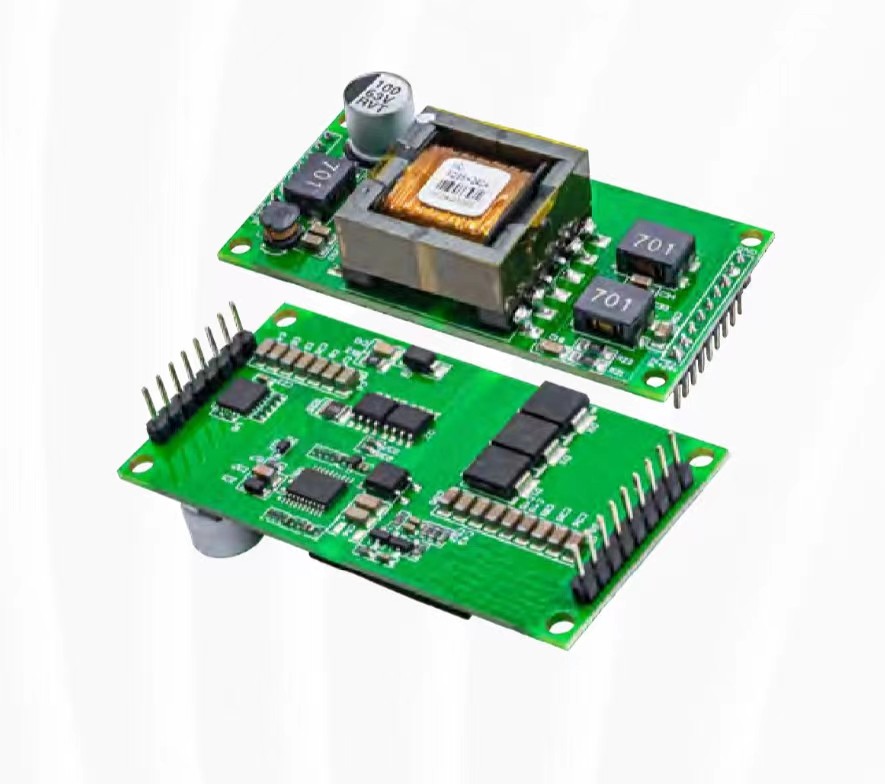

85W through hole IEEE802.3bt PoE power module

Ø The WC-PD85H240A PoE module is a traditional Category 5 and Category 6 twisted pair Ethernet power supply module based on the IEEE 802.3bt PoE standard

Ø Designed to extract power from power supply equipment (PSE) through conventional twisted pair cables over Category 5 and Category 6 Ethernet cables. Module inputs comply with IEEE803.2bt signature recognition and classification standards

Pre configured as a Type 4 8-level device, allowing the module to obtain calss 8-level power from the PSE, with a rated output voltage of 24V. Efficient DC/DC converters can achieve approximately 90% efficiency and operate within a wide input voltage range, with low ripple and low noise outputs. The DC/DC converter also has built-in output overload and short circuit protection, and provides 1500Vdc (input/output) isolation barrier
